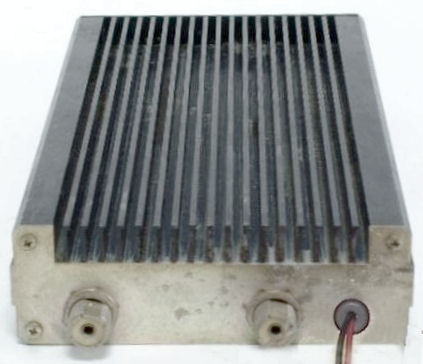

Tono VM-100W
| Type: |
Power Amplifier |
| Frequency Range: |
144-146 MHz |
| Voltage: |
13.8 VDC |
| Current Drain: |
Max 15 A |
| Drive power: |
0.1-15 W |
| Maximum output power: |
110 W |
| Dimensions (W*H*D): |
147*48*254 mm |
| Weight: |
1.6 Kg |
| Manufactured: |
19xx-19xx |
| Other: |
Built-in 18 dB GaAs-FET preamp |
| Related Documents: |
User Manual (977 kb) |
 |
